Green Laser Module

Laser in round heat sink                Laser in square heat sink



Wavelength

532nm (High Power)

532nm (Low Power)

Output Power

50 & 100 mW

3, 5, 10, 20 & 30 mW

 Power mode Continuous Wave Continuous Wave
 Minimum Output > 50 & 100 mW > 3, 5, 10, 20 & 30 mW
 Input Voltage 110 VAC or 9 VDC 110 VAC or 9VDC
Beam Mode TEMoo TEMoo
 Beam Divergence < 1.2 mrad < 1.2 mrad
Operating Current < 1200mA < 800mA
 Warm up time < 2 mins < 1 mins
TTL Modulation up to 1,000 Hz up to 1,000 Hz
 Expected Life Time 5,000 hours 4,000 hours
 Optics Glass Lens Glass Lens
Dimension 50x50x50 mm 20 (D) x 50 (L) mm
 Case Material Anodized aluminum Anodized aluminum
 Operating Temp 20oC ~ 30oC  20oC ~ 30oC

Storage Temp

10oC ~ 65oC

10oC ~ 65oC

Cooling System Air Cool Air Cool

Warranty

12 months

12 months



For Use in Class Room and Lab Experiments

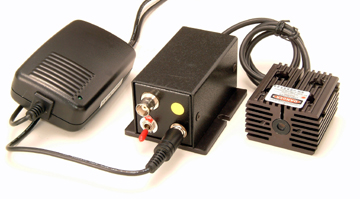

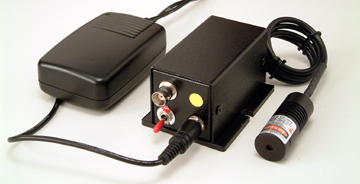

The following prices include a laser module (with round or square heat sink), a power adapter and a metal box containing driving circuits and switch. Simply connect the power adapter to a 110 or 220 V AC source, turn on the switch, and the green laser is on.

Education Discount Prices

Part No. Quantity Unit Price
MGM3 (3-5 mW) 1 $269.98
MGM3 (3-5 mW) 2-4 $259.98
MGM3 (3-5 mW) 5-9 $249.98
MGM3 (3-5 mW) 10-29 $239.98
MGM3 (3-5 mW) 30-49 $229.98

MGM5 (5-10 mW) 1 $299.98
MGM5 (5-10 mW) 2-4 $289.98
MGM5 (5-10 mW) 5-9 $279.98
MGM5 (5-10 mW) 10-29 $269.98
MGM5 (5-10 mW) 30-49 $259.98

MGM10 (10-15 mW) 1 $399.98
MGM10 (10-15 mW) 2-4 $379.98
MGM10 (10-15 mW) 5-9 $359.98
MGM10 (10-15 mW) 10-29 $339.98
MGM10 (10-15 mW) 30-49 $319.98

MGM20 (20-25 mW) 1 $549.98
MGM30 (30-35 mW) 1 $849.98
MGM50 (50-60 mW) 1 $999.98
MGM100 (100-110 mW) 1 $1,499.98
